Modular bin trailer—for towing wheelie bins

Move multiple wheelie bins to a central waste/recycling station

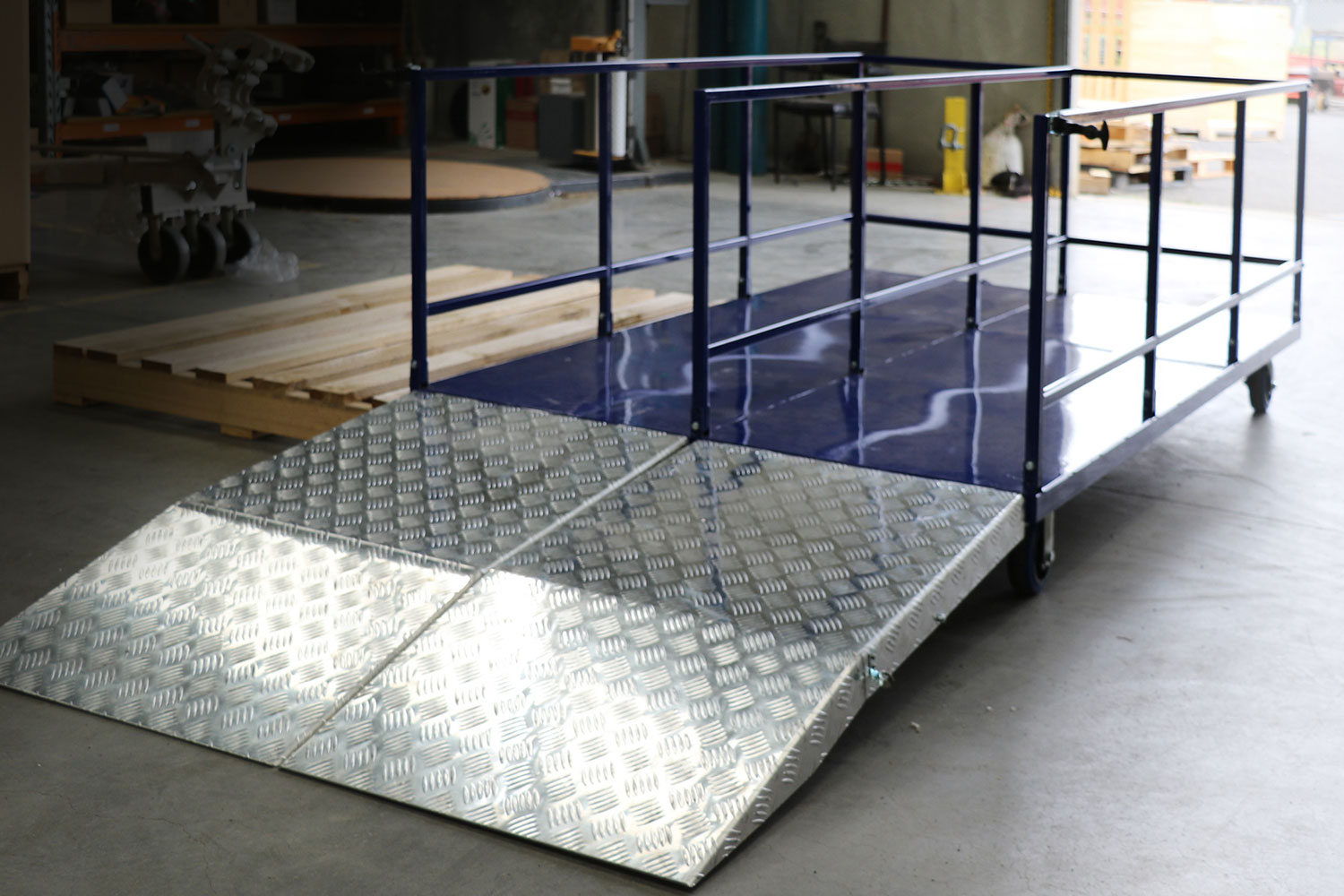

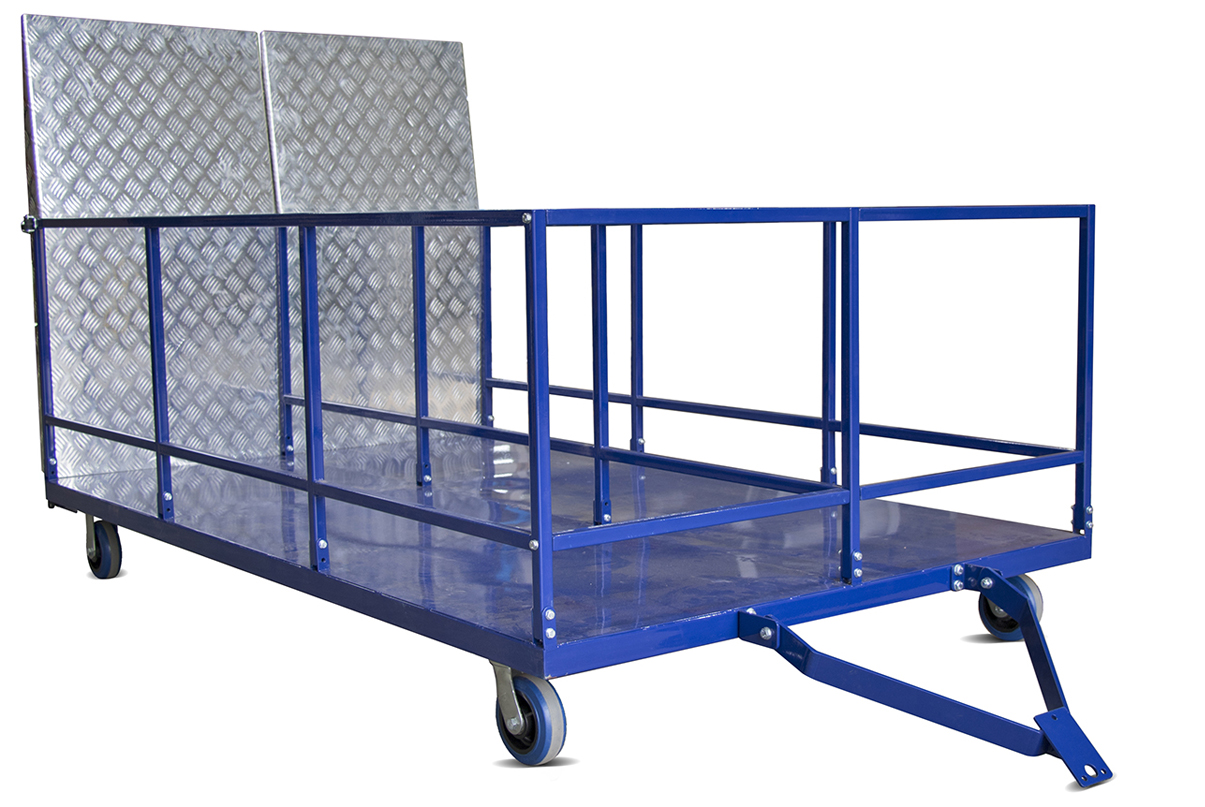

modular bin trailer (6 bay)

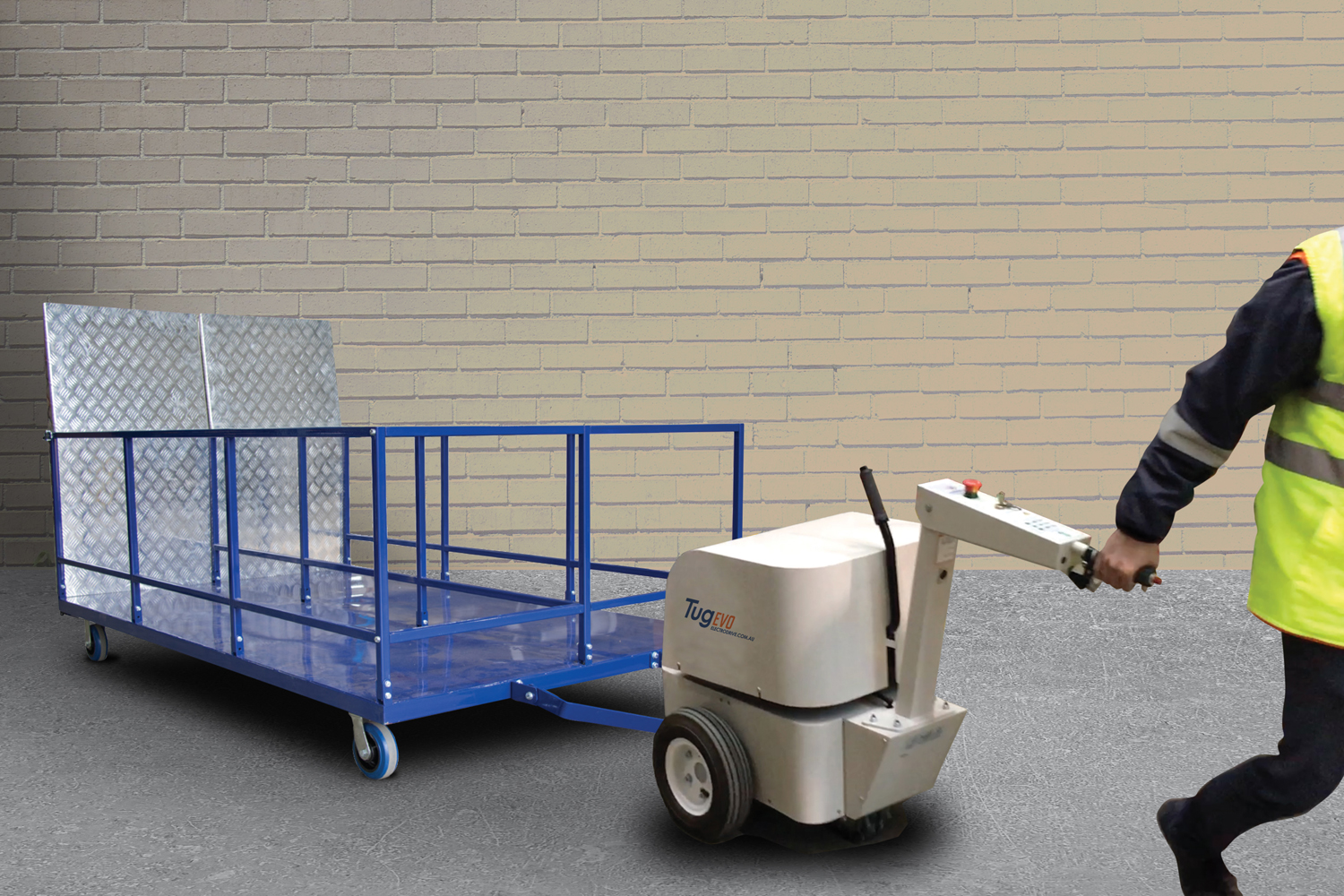

Tug Evo towing the 6-bin bay Modular bin trailer
Tug Evo towing the 6-bin bay Modular bin trailer

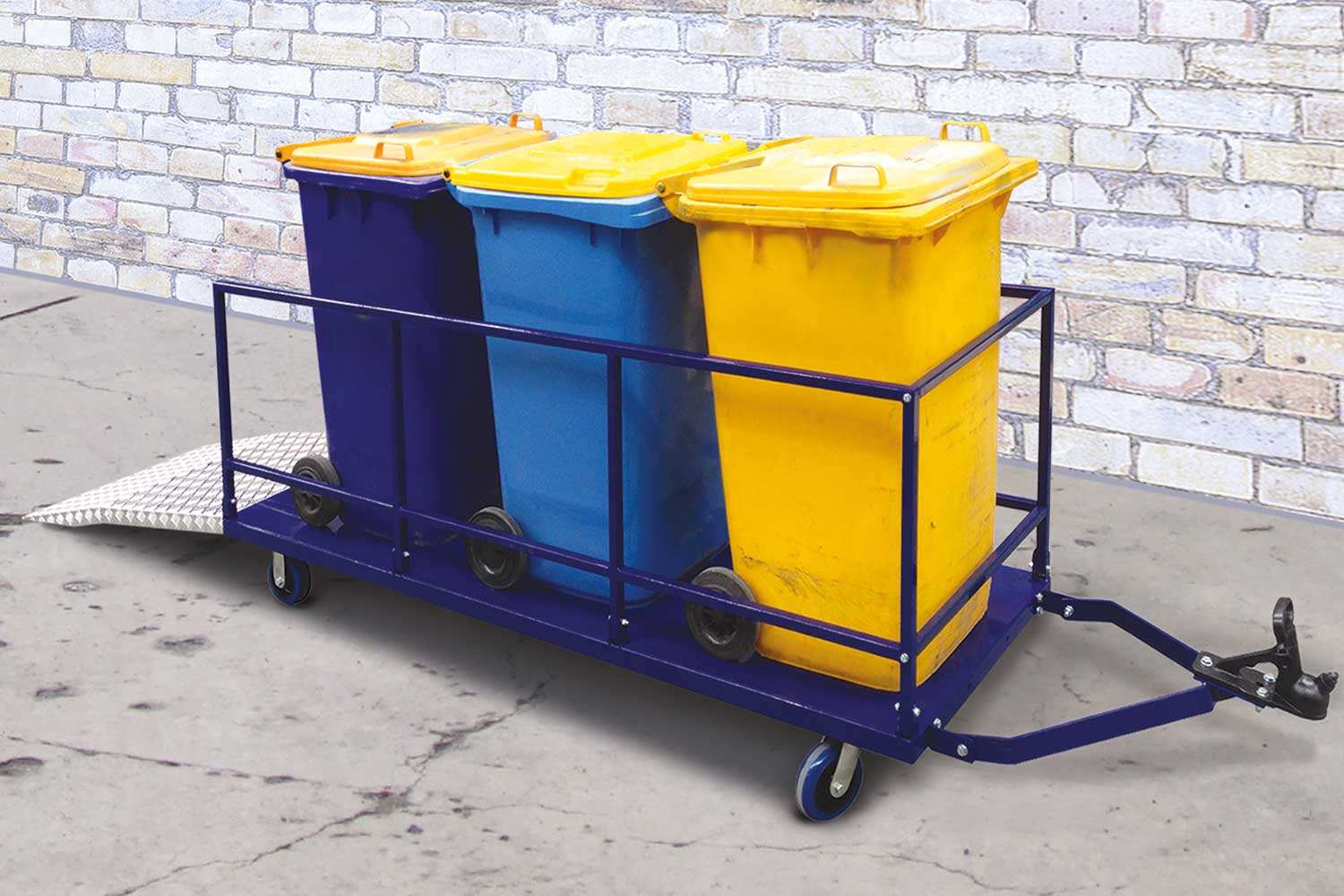

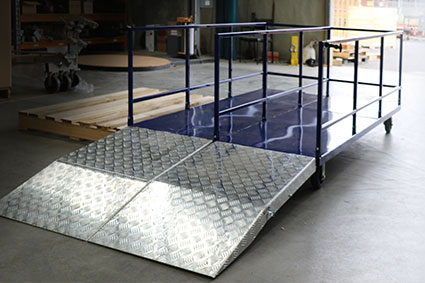

The 3-bin bay Modular bin trailer
The 3-bin bay Modular bin trailer

Effortlessly tow up to six wheelie bins to a central dumping station

Moving bins to a central location for collection presents risk of shoulder and back injuries to your staff. They most likely need to travel up and down ramps to get to their destination and generally need to get it done pretty quickly.

Our Modular Bin Trailer allows one person to quickly and effortlessly move multiple waste bins to a centralised area. Powered by an Electrodrive Tug, the system is compatible with 80, 120, 140, 240 and 360 litre wheelie bins.

Australian-made bin trailer for towing multiple wheelie bins

Australian-made, this heavy duty bin puller is fully enclosed for securing your bins while in motion, and features a folding ramp for easy access.

Available in three bay or six bay models, it is an ideal solution for facilities with multiple wheelie bins (ranging from 80–240 litres) that need to be regularly moved for emptying. The Electrodrive Tug (capacity depending on application) can be configured to attach directly to the Modular Bin Trailer (or your large waste bin).

If you want to reduce the OHS risk and time your staff are spending on moving waste bins around your facility, then the Modular Bin Trailer is the ideal solution for you.


Typical applications

Suitable for apartment buildings, schools, sports grounds, hotels, universities and institutions.



Features and specifications

Order codes

  • MODULAR3 (Three bin-bay trailer for 80–360 litre wheelie bins)

  • MODULAR6 (Six bin-bay trailer for 80–360 litre wheelie bins)

Load capacity

  • Up to 240 kg per bin bay.

  • Available in three and six bin models.

Usability

  • Fits within one standard car parking space.

  • Gas strut actuated bin ramp.

  • Can be easily hitched to an Electrodrive powered tug.

Bin compatibility

Wheelie bin: 80, 120, 140, 240 and 360 litre

Hitching

  • Comes with a drawbar to suit pin hitch as standard.

  • Also available with tow ball or hitch couplings.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Gas strut actuated bin ramp.

Warranty

Comprehensive 12-month warranty.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Dimensions (L/W/H)

  • 3-bay trailer: 2850/700/1432 mm

  • 6-bay trailer: 2874/1378/1447 mm

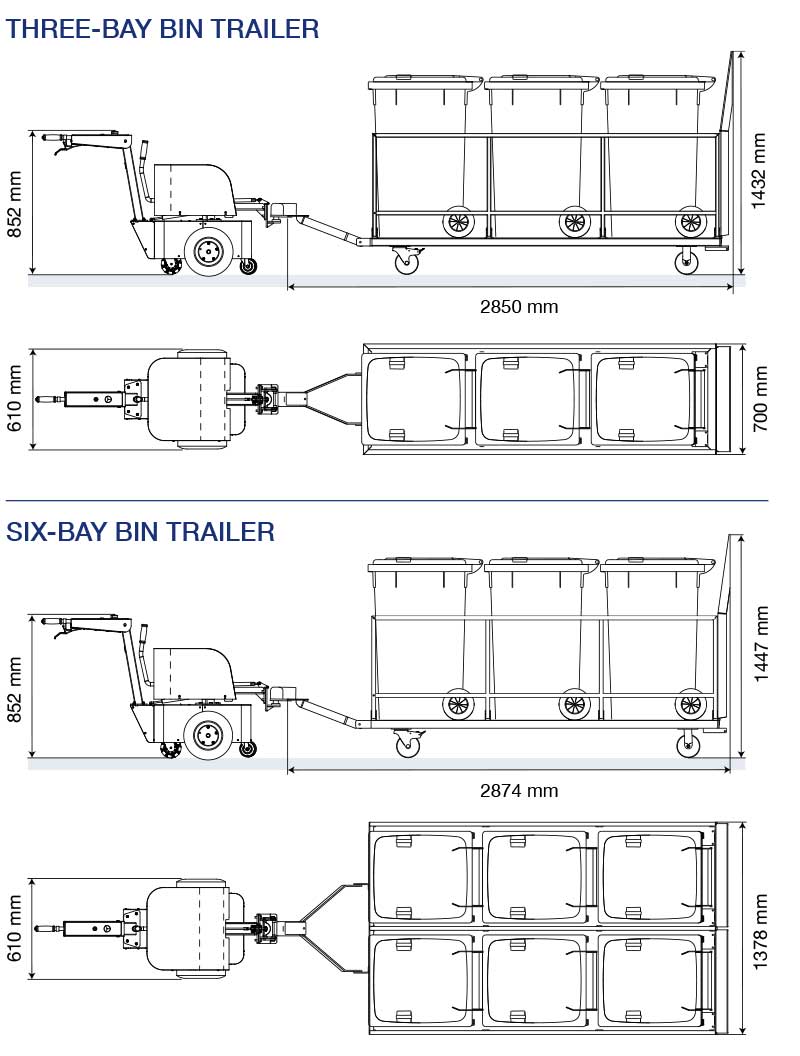

Modular bin trailer dimensions




View the Powered Tug range

Can we help?

See how a waste bin mover can help keep you and your staff safe in your workplace.

Contact us

Case study

Dealing with over 500 wheelie bins

Additional Resources

Related Products

  • If you need something for a towing application of up to 3.5 tonne; try the Tug Evo.

  • If you need a towing capacity of up to 500 kg; try the Tug Compact

  • If you need to move bins weighing up to 400 kg, try the Powered Bin Trolley
