Rugged—Manual bin lifter

Manually operated bin lifter with a 100 kg load capacity



Features at a glance

Full swing icon

Full swing



100 kg max load icon

Lifting capacity of 100 kg

10 lifts per day icon

Suitable for 10 lifts per person, per day.



Autralian-made bin lifter

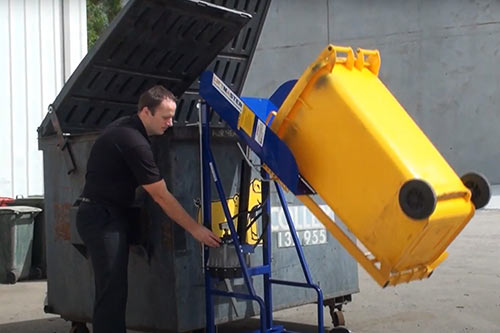

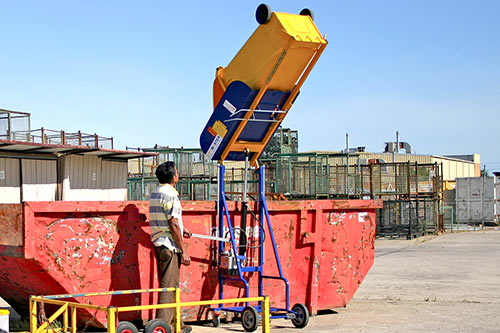

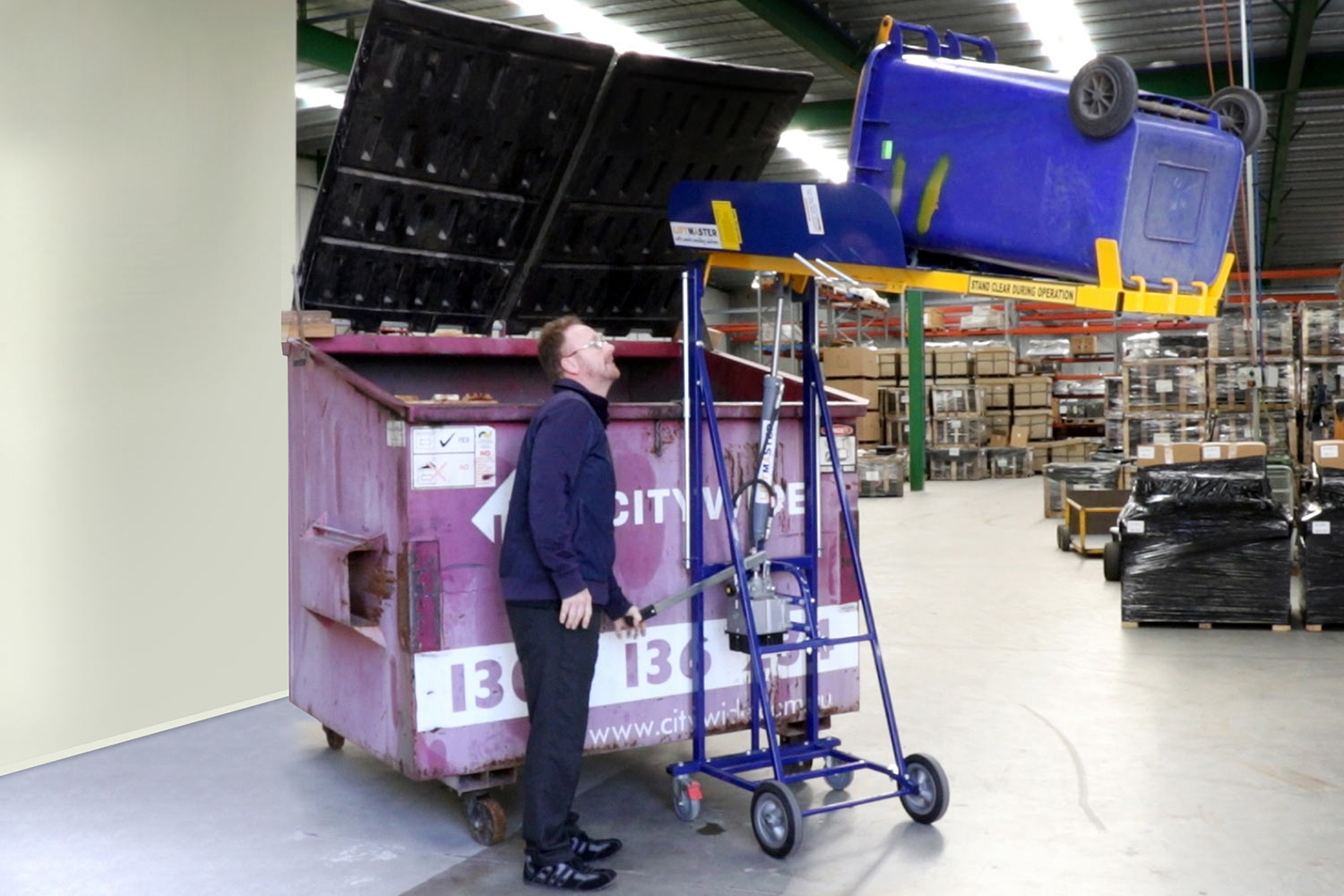

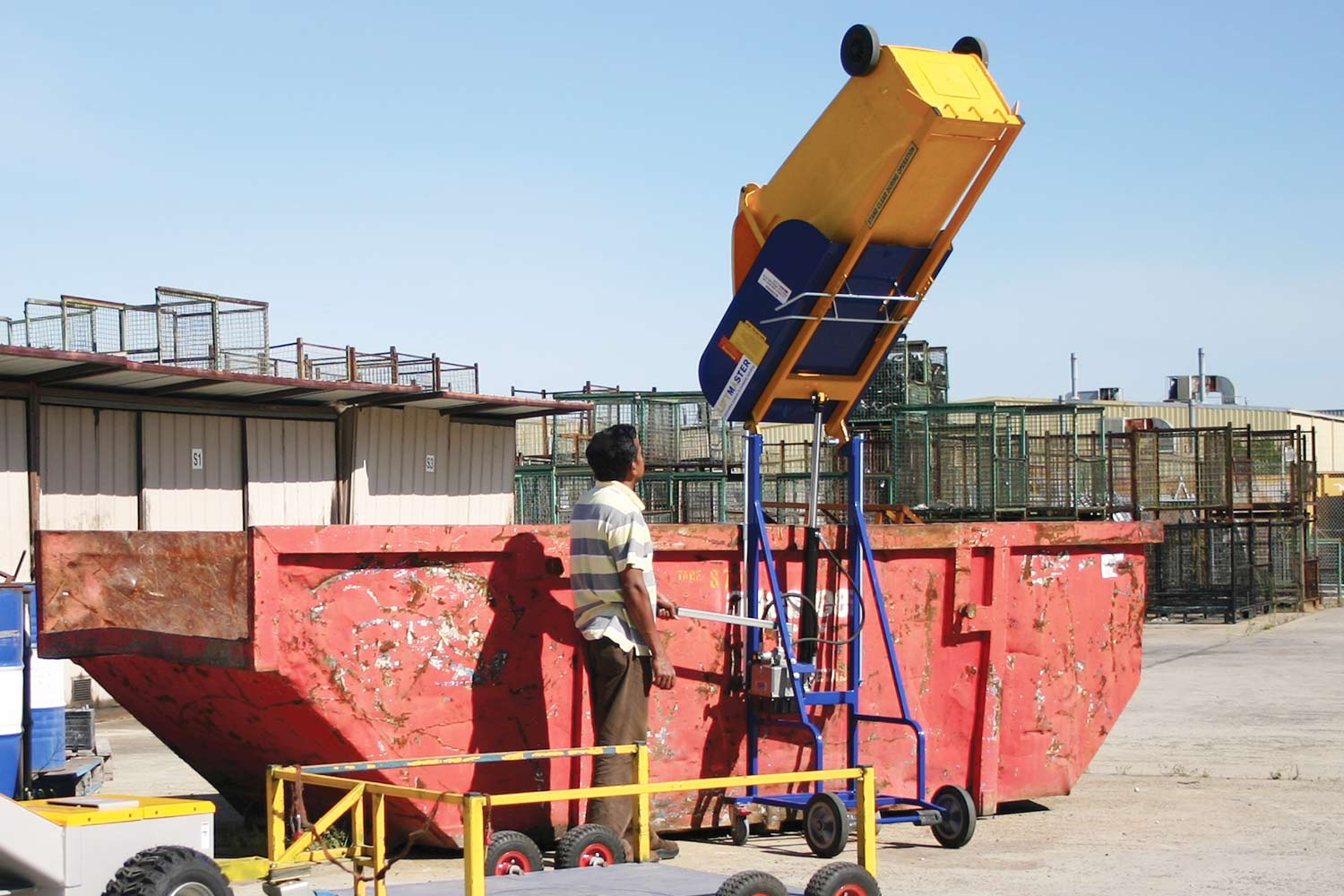

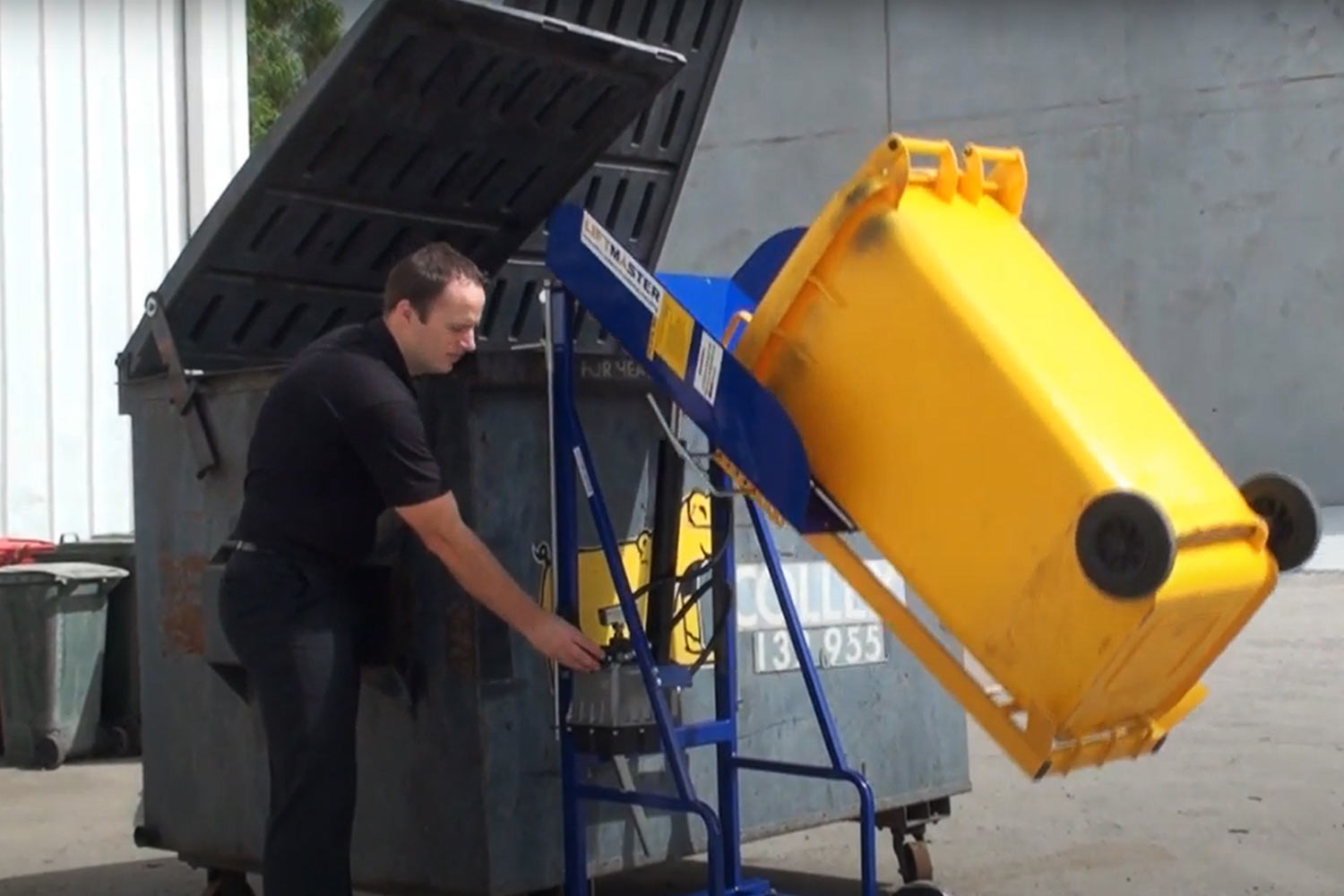

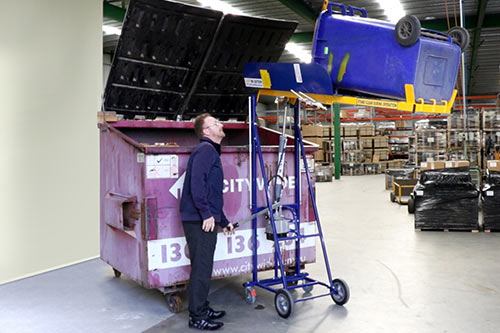

The Rugged—Manual Bin Lifter is designed with manoeuvrability in mind. Its small footprint and light weight, combined with its spark-free manual operation, make it the perfect solution for building sites.

The lift mechanism is a full swing operation, as opposed to the lift-and-tilt operation of the Ecolift.

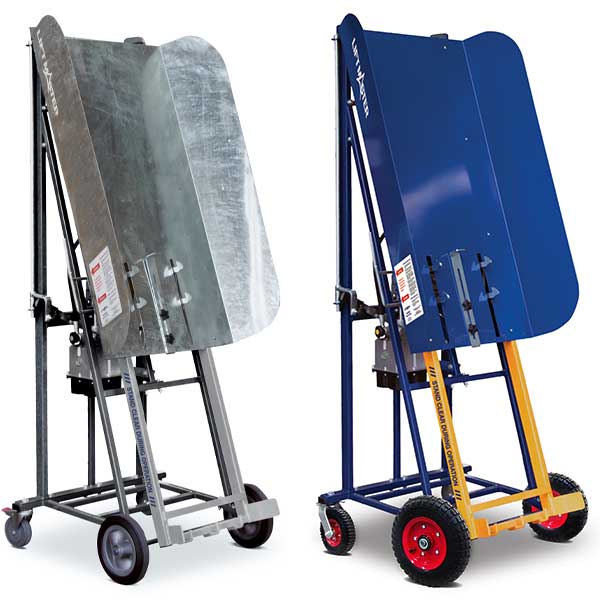

All Terrain bin lifter—suitable for outdoor use

An 'All Terrain' model with pneumatic wheels (as shown below) is also available, and perfect for outdoor use.

Rugged (Manual) All Terrain


Typical applications

Suitable for construction sites, industrial worksites, mines, factories and spark-free environments.



Features and specifications

Order codes

  • BLHP1500 (for 1500 mm skip bins)

  • BLHPAT1500 ('All terrain' model for 1500 mm skip bins)

  • BLHP1500LL (lid lifter compatible for 1500 mm skip bins)

  • BLHP1800 (for 1800 mm skip bins)

Lifting capacity

100 kg

Lifting mechanism

Full swing

Recommended lifts (per person per day)

10

Bin compatibility

  • Wheelie bin: 80, 120, 140 and 240 litre.

  • Skip bin: 1500 and 1800 mm

Operation

Method: Hydraulic hand-pump.

Time: 45 seconds/28 pumps.

Fits through internal doorways.

Yes

Highest tip point

  • BLHP1500/1500LL: 3250 mm

  • BLHP1800: 3550 mm

Country of origin

Designed and manufactured in Australia.

Safety features

  • Skip bin hooks: Secures the bin lifter to a steel dumper bin, and only operates when secured.

  • Hand-pump ensures gradual contolled lift.

  • Braking castors for stability.

Warranty

  • Comprehensive 12-month warranty.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Dimensions (L/W/H)

  • BLHP1500: 850/850/1700 mm

  • BLHP1800: 850/850/1960 mm




The bin lifter range

How the Niftylift works

Can we help?

Find out how a Rugged—Manual Bin Lifter can help keep you and your staff safe in your workplace.
