Rugged—Powered bin lifter

Battery powered bin lifter with a 150 kg load capacity

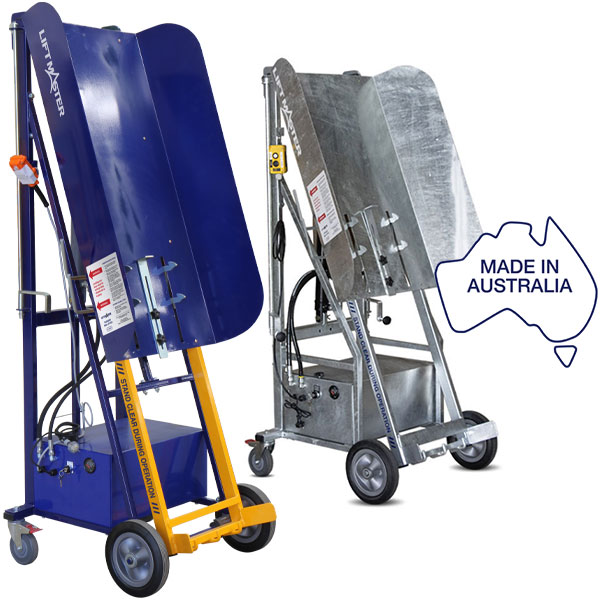

Rugged (Powered) Bin Lifter



Features at a glance

Full swing icon

Full swing

150 kg max load icon

Lifting capacity of 150 kg

50 lifts per day icon

Suitable for 50 lifts per day.

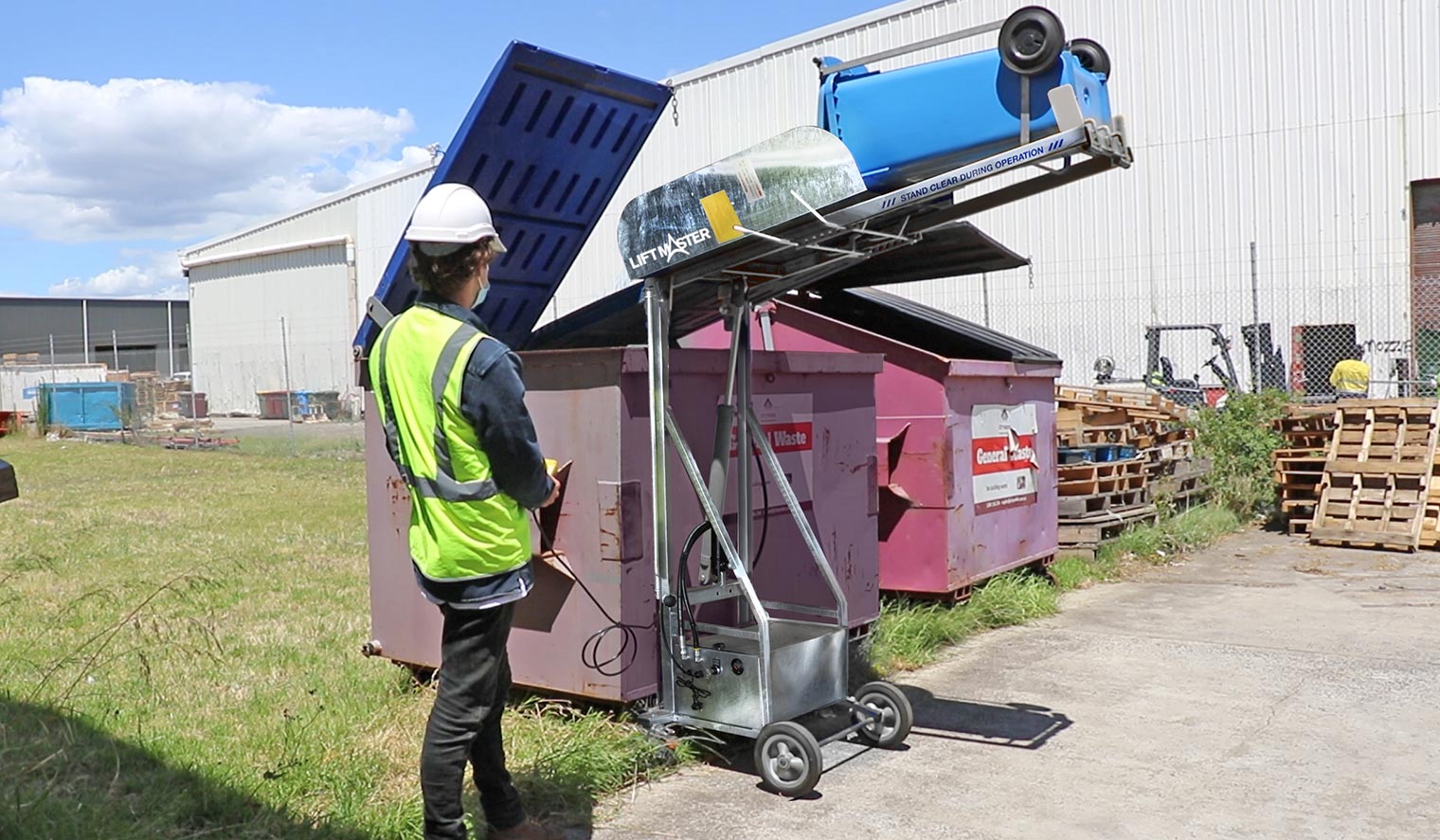

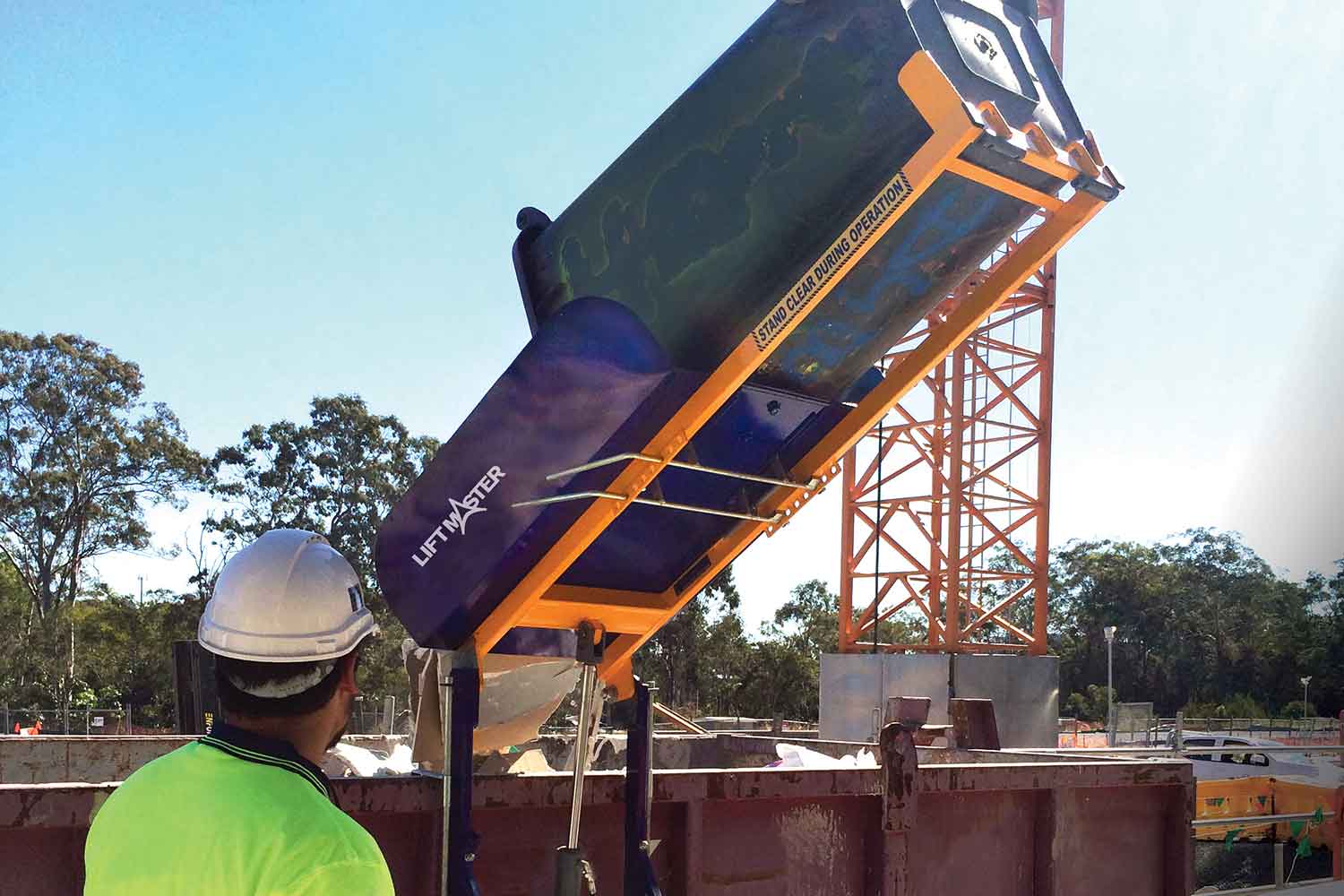

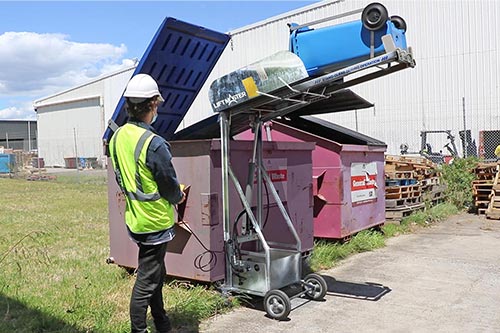

The Liftmaster Rugged powered bin lifter on a construction site
The Liftmaster Rugged powered bin lifter on a construction site
A close-up of the 'All Terrain' bin lifter pneumatic wheels
A close-up of the 'All Terrain' bin lifter pneumatic wheels

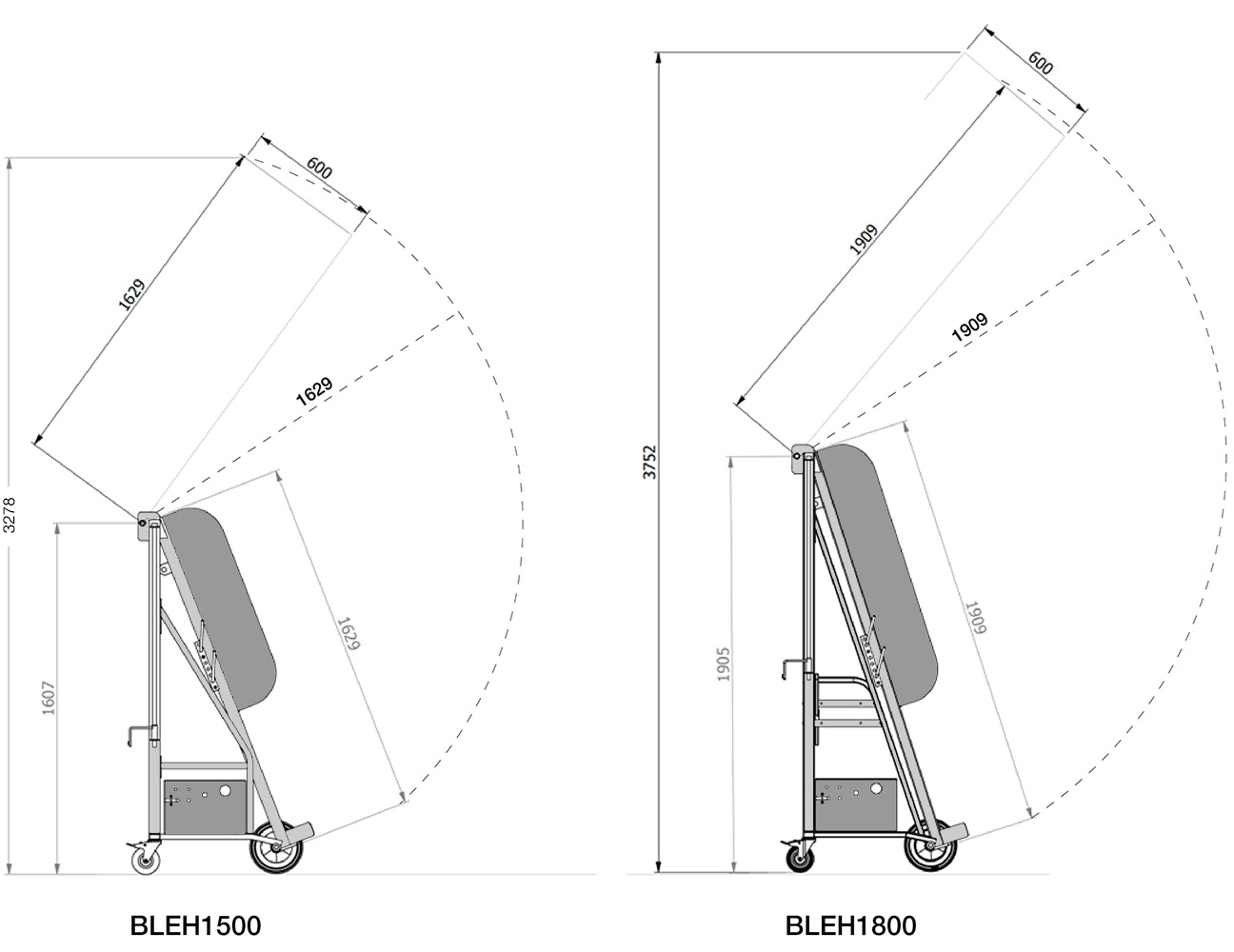

The lifting height and swept radius of the Liftmaster Rugged bin lifter
The swept radius of the Liftmaster Rugged bin lifter

Australian bin lifter

The Rugged—Powered Bin Lifter is designed with manoeuvrability in mind. Its small footprint and light weight, combined with the 240V electro-hydraulic operation makes it the perfect solution for emptying heavier bins on building and industrial sites.

The lift mechanism is a full swing operation, as opposed to the lift-and-tilt operation of the Ecolift.

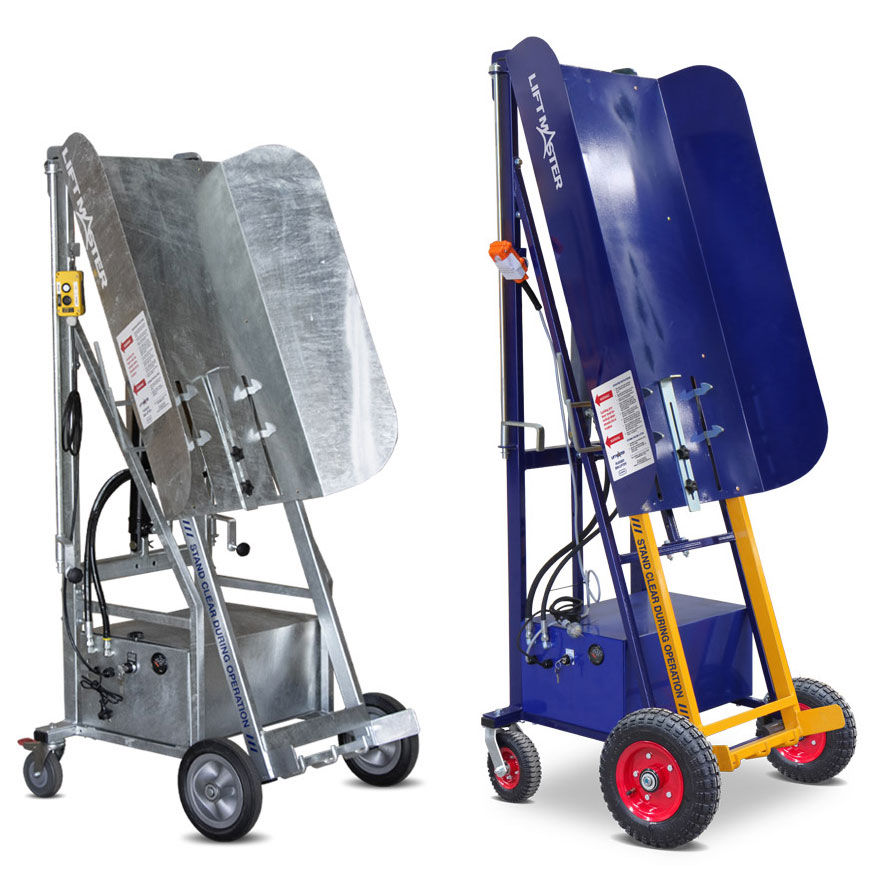

All Terrain bin lifter—suitable for outdoor use

An 'All Terrain' model with pneumatic wheels (as shown below) is also available, and perfect for outdoor use.

Rugged (Manual) All Terrain


Typical applications

Suitable for construction sites, industrial sites, local councils, factories, hotels, apartments, high-rise basements, caravan parks and other large outdoor areas.



Features and specifications

Order codes

  • BLEH1500 (for 1500 mm skip bins)

  • BLEHAT1500 ('All terrain' model for 1500 mm skip bins)

  • BLEH1500LL (lid lifter compatible for 1500 mm skip bins)

  • BLEH1800 (for 1800 mm skip bins)

Lifting capacity

150 kg

Lifting mechanism

Full swing

Recommended lifts (per day)

50

Bin compatibility

  • Wheelie bin: 80, 120, 140 and 240 litre

  • Skip bin: 1500 and 1800 mm

Operation

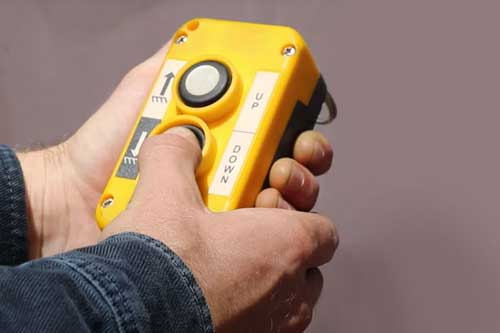

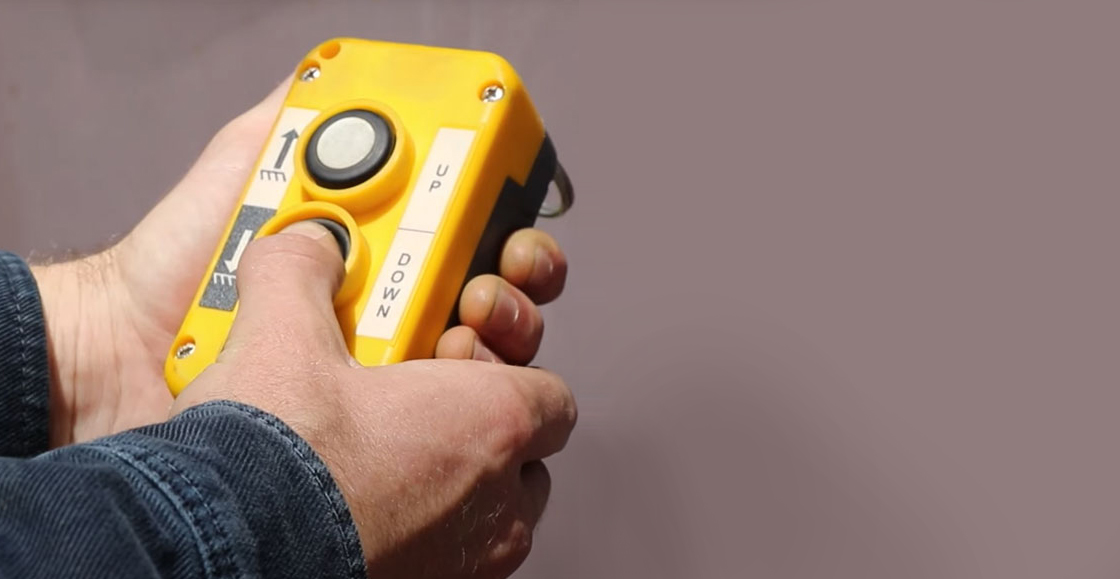

  • Method: Push-button hydraulic system.

  • Time: 35 seconds.

Battery

  • 12V rechargeable battery and smart charger.

  • 10A main outlet.

Fits through internal doorways

Yes

Highest tip point

  • BLEH1500/1500LL: 3278 mm

  • BLEH1800: 3752 mm

Swept radius

  • BLEH1500/1500LL: 1629 mm

  • BLEH1800: 1909 mm

Country of origin

Designed and manufactured in Australia.

Safety features

  • Will only operate when connected to steel dumper/skip bin.

  • Braking castors for stability.

Warranty

Comprehensive 12-month warranty.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Dimensions (L/W/H)

  • BLEH1500: 850/850/1700 mm

  • BLEH1800: 850/850/1960 mm




The bin lifter range

How the Niftylift works

Can we help?

Find out how a Rugged—Powered Bin Lifter can help keep you and your staff safe in your workplace.
