Electrodrive powered tug towing a 1100 litre bin

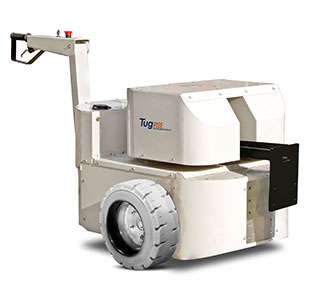

Tug Rise powered tug

Tow up to 1T on 15° ramps or 5T on flat ground

Tug Rise hero image
Features at a glance

Tow up to 1 tonne on a 15º incline.

Tow up to 5 tonne on flat surface.

Can tow 600 and 1100 litre bins.

Ergonomic design and folding tiller handle.

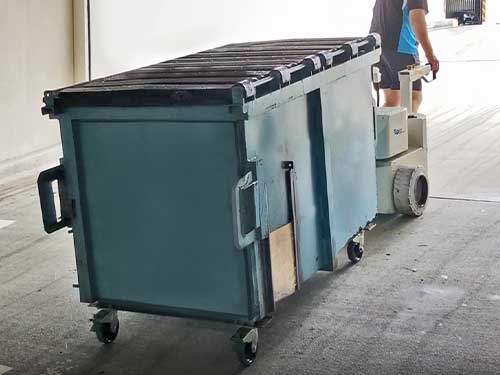

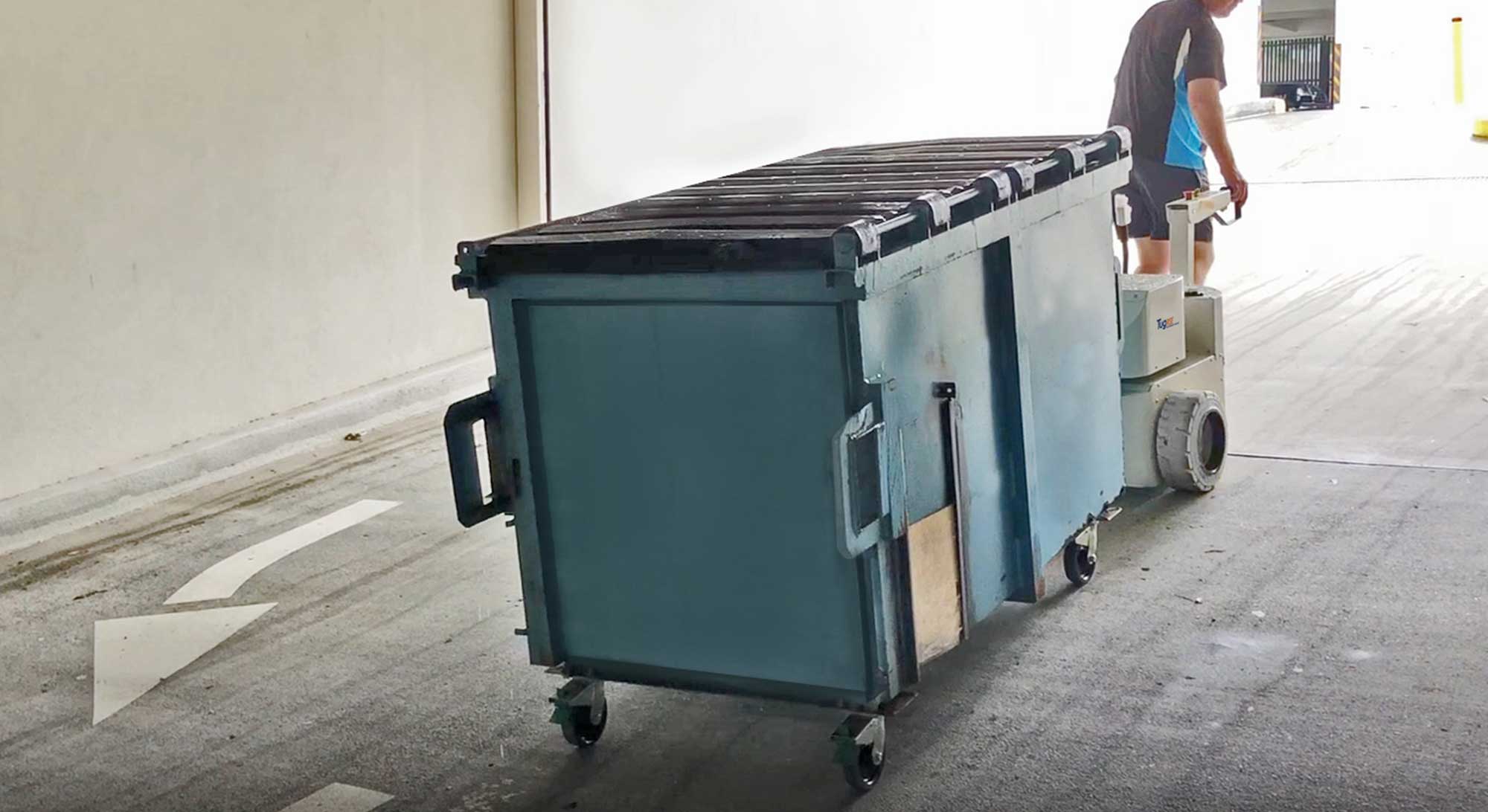

Tow heavy bins up ramps using the Tug Rise

The all new Tug Rise battery operated electric tug has been specially designed to tow on steep slopes or ramps of 15 degrees.

Safely tow up to 1,000 kg up driveway ramps (on a 15 degree ramp or incline) or tow up to 5,000 kg on a flat surface. (Unlike the Tug Axis and Tug Tough which are rated for 6 degree ramps, the Tug Rise is rated for extreme driveway ramps of up to 15 degrees.)

If you're looking for a bin tug, the Tug Rise is suitable for moving 660 litre and 1100 litre bins up and down ramps. Universal towing devices are available for 660 and 1100 litre bins. We can also supply directional lock mechanisms for swivel castors to help control the steering of your bins.

As with all the electric tugs in our range, the Tug Rise is designed to improve safety and efficiency, while reducing the risk of accidents that can occur when manually moving very heavy loads.

Electrodrive's Tug Compact towing heavy steel on a slope

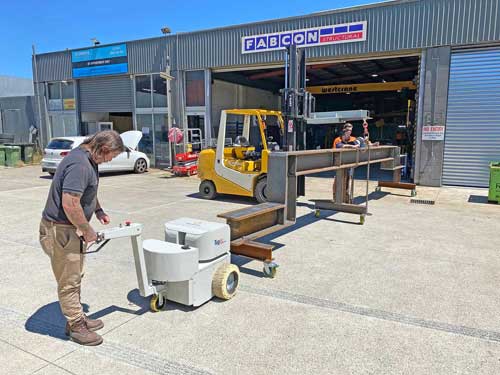

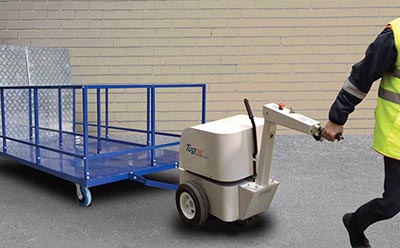

The Tug Rise towing steel
Electrodrive's Tug Compact towing heavy steel on a slope

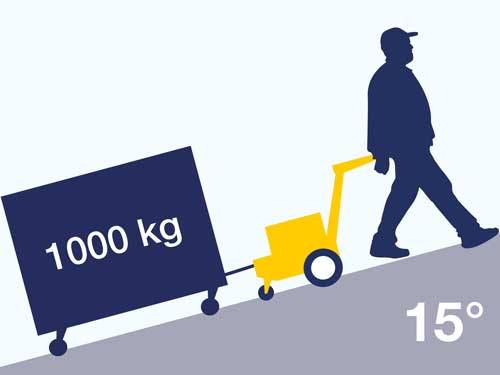

Towing a 1100 litre bin up a 15° ramp
Tug Rise ramp incline
Towing up a 15 degree incline

Typical applications

Suitable for moving heavy bins and trolleys on sloped driveways and ramps, around high-rise buildings/apartment basements, or around caravan parks.

Features and specifications

Order code

TUGRISE1TNH

Load capacity

Tow up to one tonne on a 15° incline.

Tow up to 5,000 kg on flat surfaces.

Max. speed

Up to 4 km per hour.

Speed mode

Three speed control with forward, reverse and emergency stop.

Usability

  • Simple to use, no driver’s licence required.

  • Quiet, smooth operation.

  • Zero emissions.

  • Turret with turret lock for easy reversing.

  • Heavy duty high-traction wheels.

  • Three wheels for maximum stability.

  • Battery operated and rechargeable.

  • Key on/off switch.

  • Ergonomic design with folding tiller handle.

  • Park brake release—to enable manual operation in the event of a flat battery.

  • Low maintenance.

Hitching

  • Wide variety of hitches are available for easy attachment to trolleys.
    Check the hitching and accessories page for more information.

  • Universal towing device to suit 660 litre and 1100 litre bins available.

Country of origin

Designed and manufactured in Australia.

Safety features

  • Emergency stop button.

  • Emergency back-off button.

  • Electromechanical park brake.

Warranty

  • Comprehensive 12-month warranty.

  • Six month warranty on battery and charger.

Service

Training and servicing programs are available.

Battery

Two 12V-70Ah rechargeable batteries (deep cycle, long lasting, maintenance-free) with 24V smart charger.
Optional upgrade: 100Ah batteries.

Dimensions (L/W/H)

1800/902/894 mm (approx.)

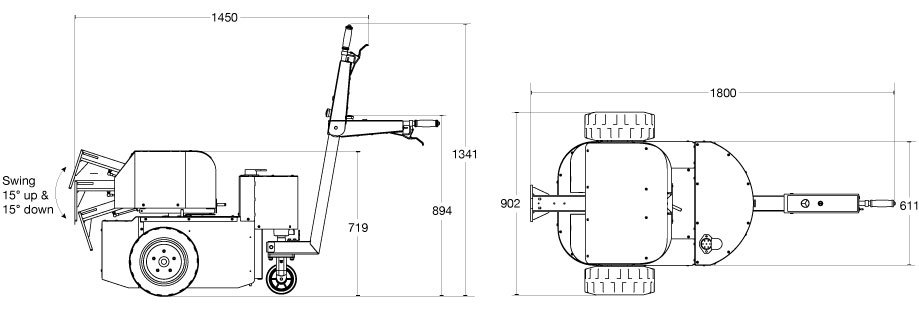

A diagram of the Tug Rise with its dimensions

Hitches for towing 660 and 1100 litre bins

For more information on towing 660 litre and 1100 litre bins, visit our hitching and accessories page.

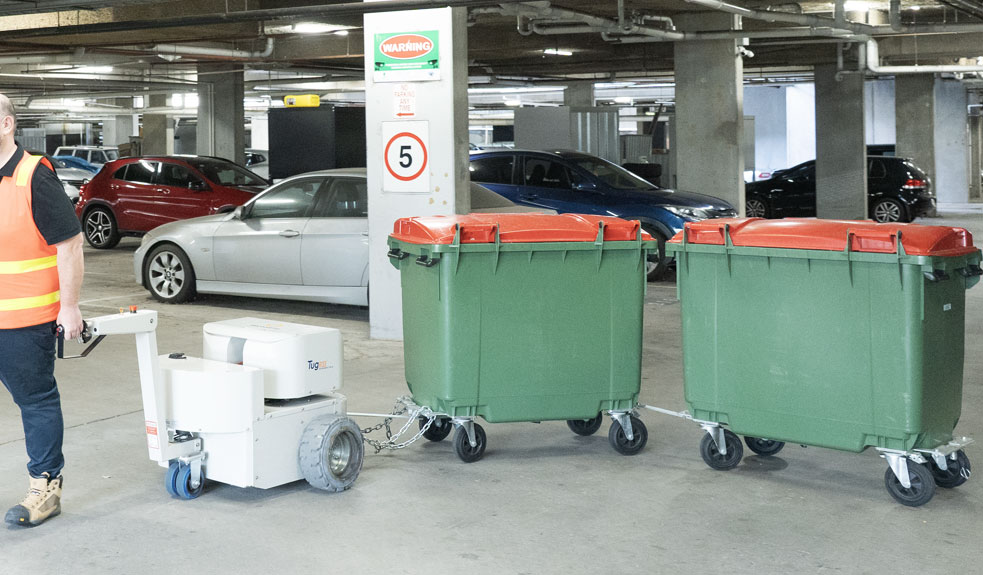

Sulo bins with the Tug Incliner

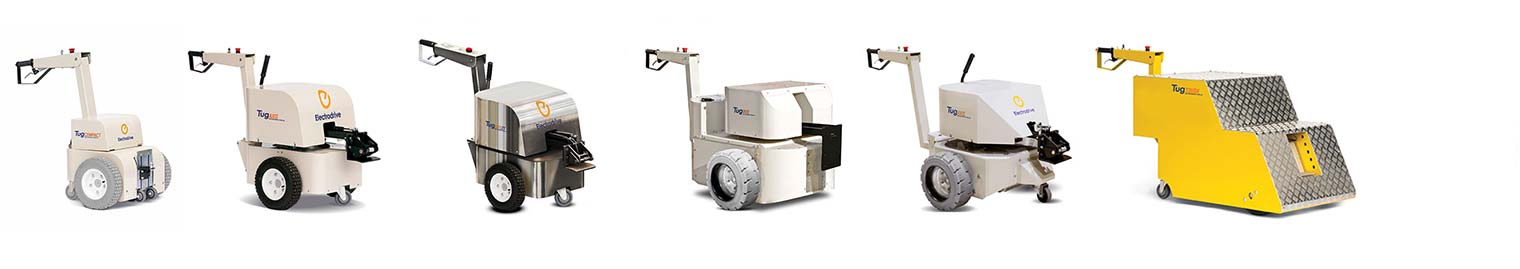

The powered tug range

The Powered Tug range



Serviced Equipment



Get a quote

Download the Waste Management quote form.
Simply save it to your computer, fill it out, and then email it back to us.

Download quote form



Looking for more information?

Find out how a Tug Rise can help keep you and your staff safe in your workplace.

Contact us



Case study

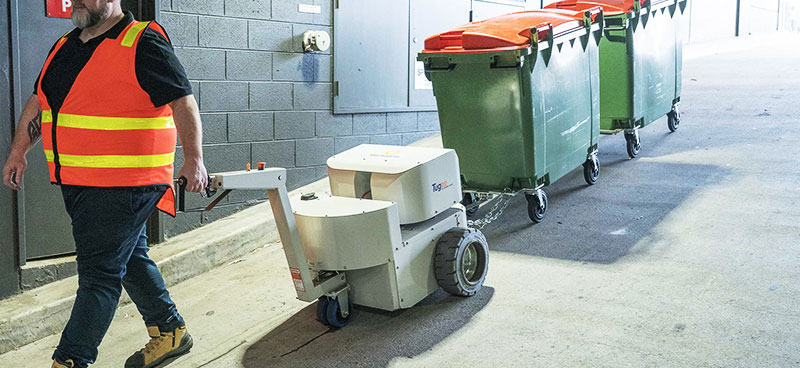

Dealing with over 500 wheelie bins
