Liftmaster Simplicity Plus bin lifter

Battery-operated push-button bin lifter with a 150 kg load capacity

Liftmaster's Simplicity Plus Bin Lifter

Features at a glance

Lift and tilt icon

Lift and tilt

Highest tip point: 2900 mm

150 kg max load icon

Lifting capacity of 150 kg

100 lifts per day icon

Suitable for 100 lifts per day

Safety panels icon

Safety panels



Australian-made bin lifter

The Liftmaster Simplicity Plus Bin Lifter is a portable push-button unit that aids in the lifting and emptying of wheelie bins into skip bins.

The Simplicity Plus is the ideal unit for medium weight and frequent lifts. The push button operation eliminates all of the manual handling and associated risk. Designed to lift up to 150 kg at a time, the Simplicity Plus is ideal for up to 100 lifts per day.

A simple process of pushing the button to lift and empty the wheelie bin in a 35 second cycle. It operates on a 12V rechargeable battery which ensures the unit is completely portable.

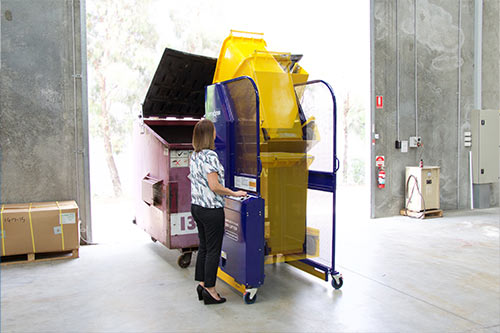

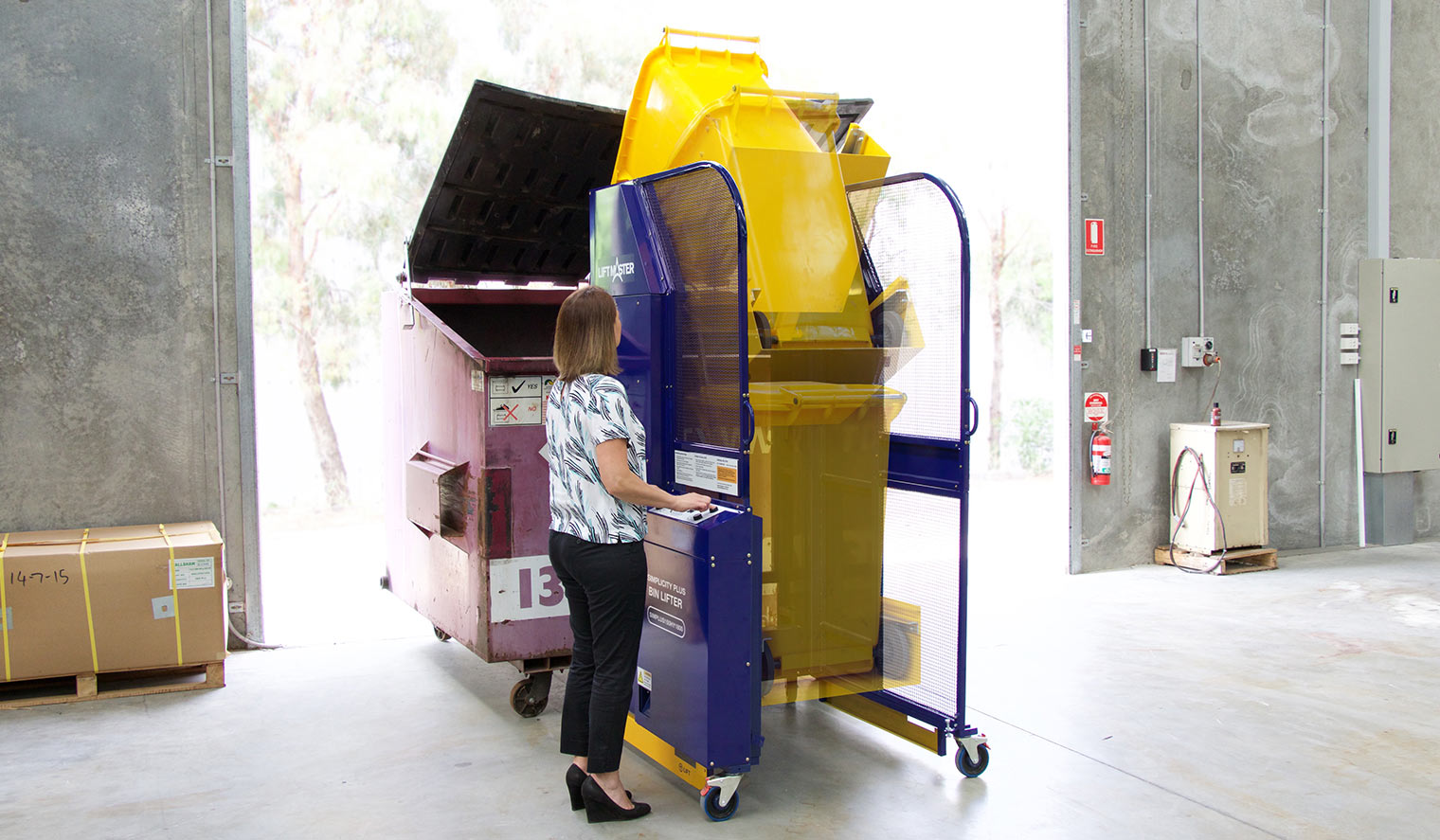

The Simplicity Plus has a lift-and-tilt motion
The Simplicity Plus bin lifter

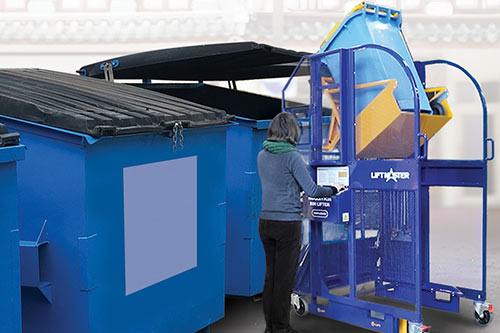

Liftmaster's Simplicity Plus bin lifter has a lift-and-tilt motion
The Simplicity Plus has a lift-and-tilt motion

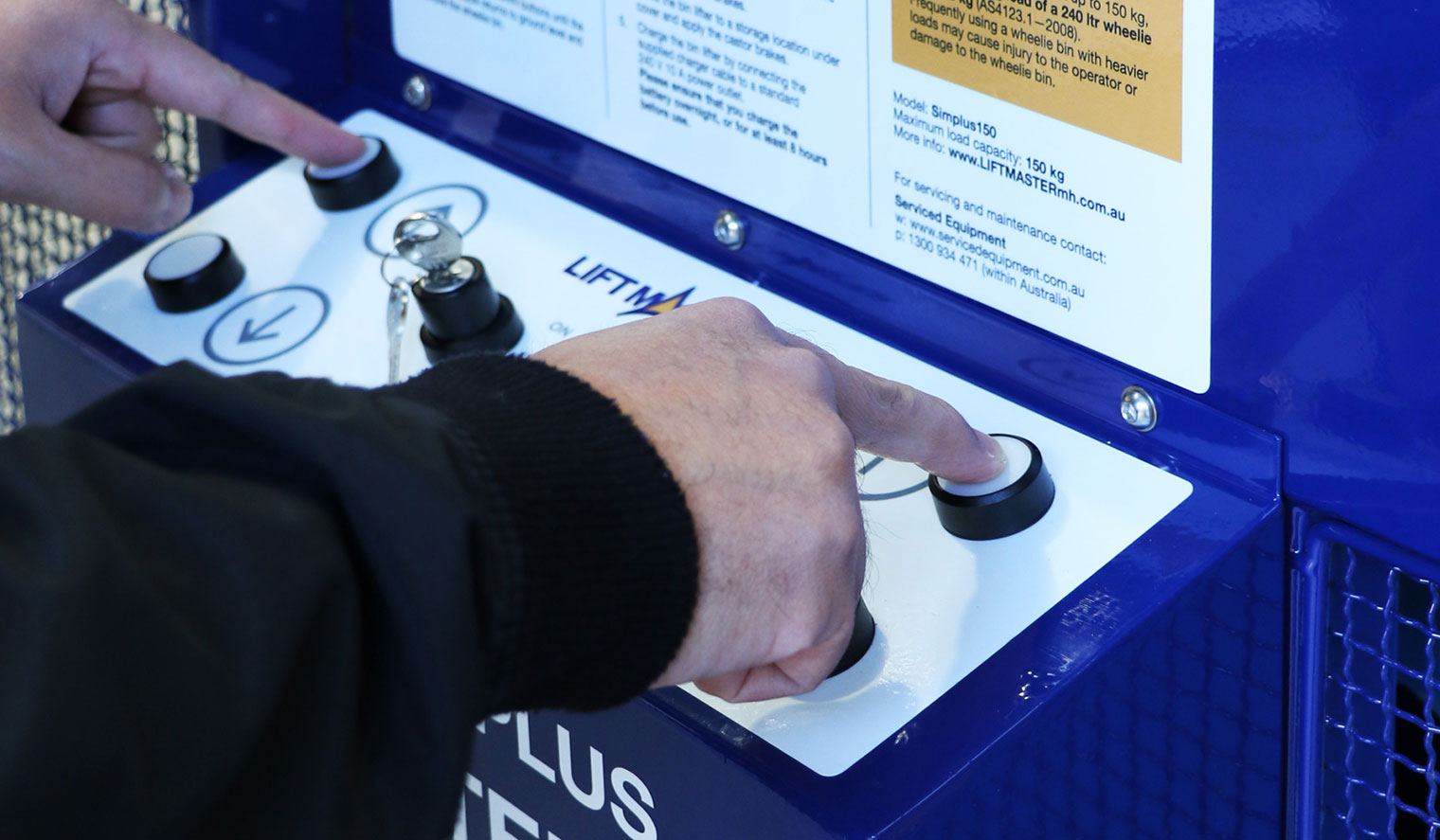

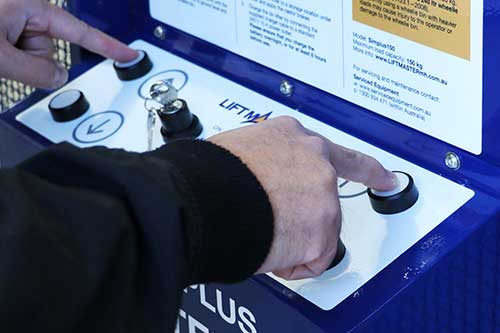

The push-button control panel on the Simplicity Plus bin lifter
The push-button control panel on the Simplicity Plus bin lifter

Typical applications

Suitable for factories, warehouses, storage facilities, apartment blocks, waste management companies, schools, event organisers.



Features and specifications

Order code

SIMPLUS150HY1500 (for 1500 mm skip bins)

SIMPLUS150HY1800 (for 1800 mm skip bins)

Lifting capacity

150 kg

Lifting mechanism

Lift-and-tilt

Recommended lifts (per day)

100

Bin compatibility

Wheelie bin: 80, 120, 140 and 240 litre

Skip bin: 1500 and 1800 mm

Operation

Method: Push-button hydraulic system.

Time: 35 seconds.

Battery

12V rechargeable battery and smart charger

10A main outlet

Highest tip point

2900 mm

Country of origin

Designed and manufactured in Australia.

Safety features

  • Safety cage to eliminate hand and foot crush-points for operators and bystanders.

  • Braking castors for stability.

Warranty

  • Comprehensive 12-month warranty.

Service

Training and servicing programs are available.

Download our Preventative Maintenance Plans for more information.

Dimensions (L/W/H)

1500/980/2200 mm

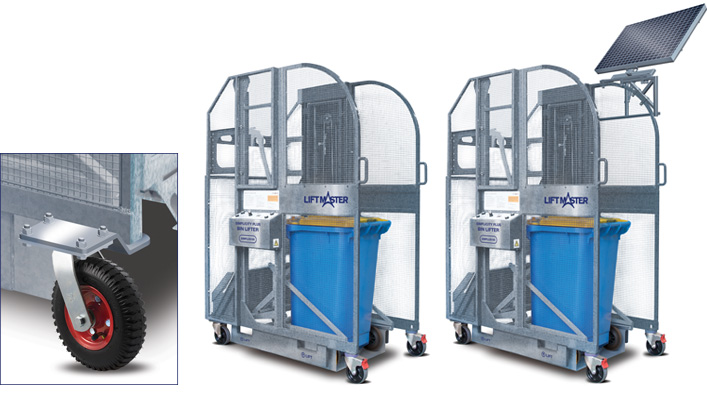

Liftmaster's bin lifter range

Liftmaster's bin lifter range

Can we help?

Find out how a Liftmaster Simplicity Plus Bin Lifter can help keep you and your staff safe in your workplace.
